Omron NT touch screen is currently difficult to be purchased. or even this has been discontinued model. NT series has been substituted with the new touch screen NS series.
And about the old program of NT series can be used by converting with a program conversion. It's easy, we do not need to create a new program again. The following steps will explain about how to convert NT to NS:
 |
| NT Series by Omron |
 |
| NS Series by Omron |
And about the old program of NT series can be used by converting with a program conversion. It's easy, we do not need to create a new program again. The following steps will explain about how to convert NT to NS:
Software required: NT serie support tool ( Example: Version 4.73 ), CX Designer (Example : Version 3.2).
A. With NT Support Tool, changing file format to " mmi " :
1. As the example file name to be converted is " MACHINE_D ".
With NT support tool, open file MACHINE_D
2. After opened, Select File an then " Save as ":
A. With NT Support Tool, changing file format to " mmi " :
1. As the example file name to be converted is " MACHINE_D ".
With NT support tool, open file MACHINE_D
3. Select save as type " mmi ", and folder name (Example: Test) to save:
4. Select OK, if it appears following message and it's successfully stored in " mmi " format
B. With CX Designer, Conversion of mmi format into NS:

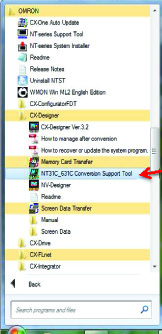

1. Through the start , goto CX Designer and select NT31C_631C Conversion Support Tool
2. Will look as follows, edit parameters required (conversion source/destination etc)
3. Press the " arrow" to start conversion
4. The conversion process is complate.
By using CX Designer, open the file conversion results. File found on the red box as in the step No.2. If needed, make a check and editing of NS program which is the result of the conversion .
